100G QSFP28 optical transceivers include SR4, AOC, AOC breakout, CWDM4, CLR4, eCWDM4, PSM4, PSM4 pigtail, LR4, LR4 Lite, ER4 Lite series. They use LC or MPO receptacles, with the features of IEEE802.3bm and SFF-8636 Compliant, MSA Compliant, Low Power Consumption, Small Size and High-speed. They are designed for applications of 100G Data Center Internal Network, Data Center Interconnection and Metro Network.

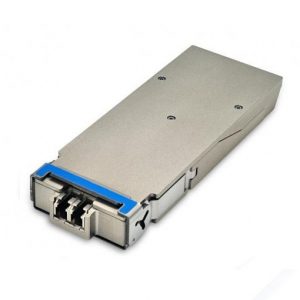

Product DescriptionCFP LR4 angled connector single rateCFP LR4 angled connector dual rates
Data Rate (Gbit/s)103.125G103.125 & 111.81G
Reach10km10km
TX1310nm EML1310nm EML
RXPINPIN
TX_Min (dBm)-4.3-2.5
TX_Max (dBm)4.52.9
Rx Sensitivity (dBm)-8.6-10.3
Power Consumption<12.0W<12.0W
Product DescriptionCFP LR4 straight connector single rateCFP LR4 straight connector dual rates
Data Rate (Gbit/s)103.125G103.125 & 111.81G
Reach10km10km
TX1310nm EML1310nm EML
RXPINPIN
TX_Min (dBm)-4.3-2.5
TX_Max (dBm)4.52.9
Rx Sensitivity (dBm)-8.6-10.3
Power Consumption<12.0W<12.0W
Product DescriptionCFP2 LR4 single rateCFP2 LR4 dual rates
Data Rate (Gbit/s)103.125G103.125 & 111.81G
Reach10km10km
TX1310nm EML1310nm EML
RXPINPIN
TX_Min (dBm)-4.3-2.5
TX_Max (dBm)4.52.9
Rx Sensitivity (dBm)-8.6-10.3
Power Consumption<9.0W<9.0W
Temperature (deg C)0~700~70
Product DescriptionCFP4 LR4CFP4 LR4 Dual RatesCFP4 ER4 LiteCFP4 ER4 Lite Dual Rates
Data Rate (Gbit/s)100G100G/112G100G100G/112G
Reach10km10km30km(Non-FEC)/40km30km(Non-FEC)/40km
TX1294 -1310nm LWDM EML1294 - 1310nm LWDM EML1294 -1310nm LWDM EML1294 - 1310nm LWDM EML
RXPINPINAPDAPD
TX_Min (dBm)-4.30.2411
TX_Max (dBm)4.54.0/2.94.5/4.54.5/4.5
Rx Sensitivity (dBm)-10.60.7840909090.808612440.790575916
Power Consumption<5.0W<5.0W<5.0W<5.0W
Temperature (deg C)0~700~700~700~70
