InnoLight 10G SFP+ Ethernet optical transceivers include LR, ER, ZR, and DWDM (40km and 80km) series. This series of products adopt LC connector, compliant with IEEE802.3ae, SFF-8472 and SFF-8431, with features of Low Power Consumption, Small Size and High-speed. They are designed for applications of Data Centers, Metro Network, Wireless Network and Transmission network.

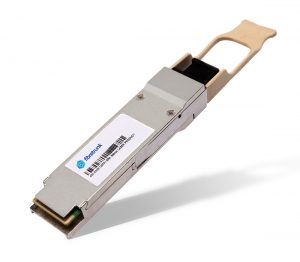

Product DescriptionQSFP+ SR4QSFP+ eSR4
Data Rate (Gbit/s)40G40G
Reach100m300m
TX850nm VCSEL850nm VCSEL
RXPINPIN
TX_Min (dBm)-7.6-7.3
TX_Max (dBm)11
Rx Sensitivity (dBm)-9.5-9.9
Power Consumption<1.5w<1.5w
Temperature (deg C)0~700~70
Product DescriptionQSFP+ IR4QSFP+ LR4QSFP+ ER4QSFP+ LX4
Data Rate (Gbit/s)40G40G40G40G
Reach2km10km40km150m/2km
TXDFB CWDMDFB CWDMDFB CWDMDFB CWDM
RXPINPINAPDPIN
TX_Min (dBm)-7-7-2.70.714285714
TX_Max (dBm)2.32.34.53.5/2.3
Rx Sensitivity (dBm)-11.7-13.7-190.598290598
Power Consumption<3.5w<3.5w<3.5w<3.5w
Temperature (deg C)0-700~700~700~70
Product DescriptionQSFP+ PSM IR4QSFP+ PSM LR4
Data Rate (Gbit/s)40G40G
Reach1.4km10km
TX1310nm FP1310nm DFB
RXPINPIN
TX_Min (dBm)-5.5-5.5
TX_Max (dBm)1.51.5
Rx Sensitivity (dBm)-11.5-12.6
Power Consumption<3.5w<3.5w
Temperature (deg C)0~700~70
