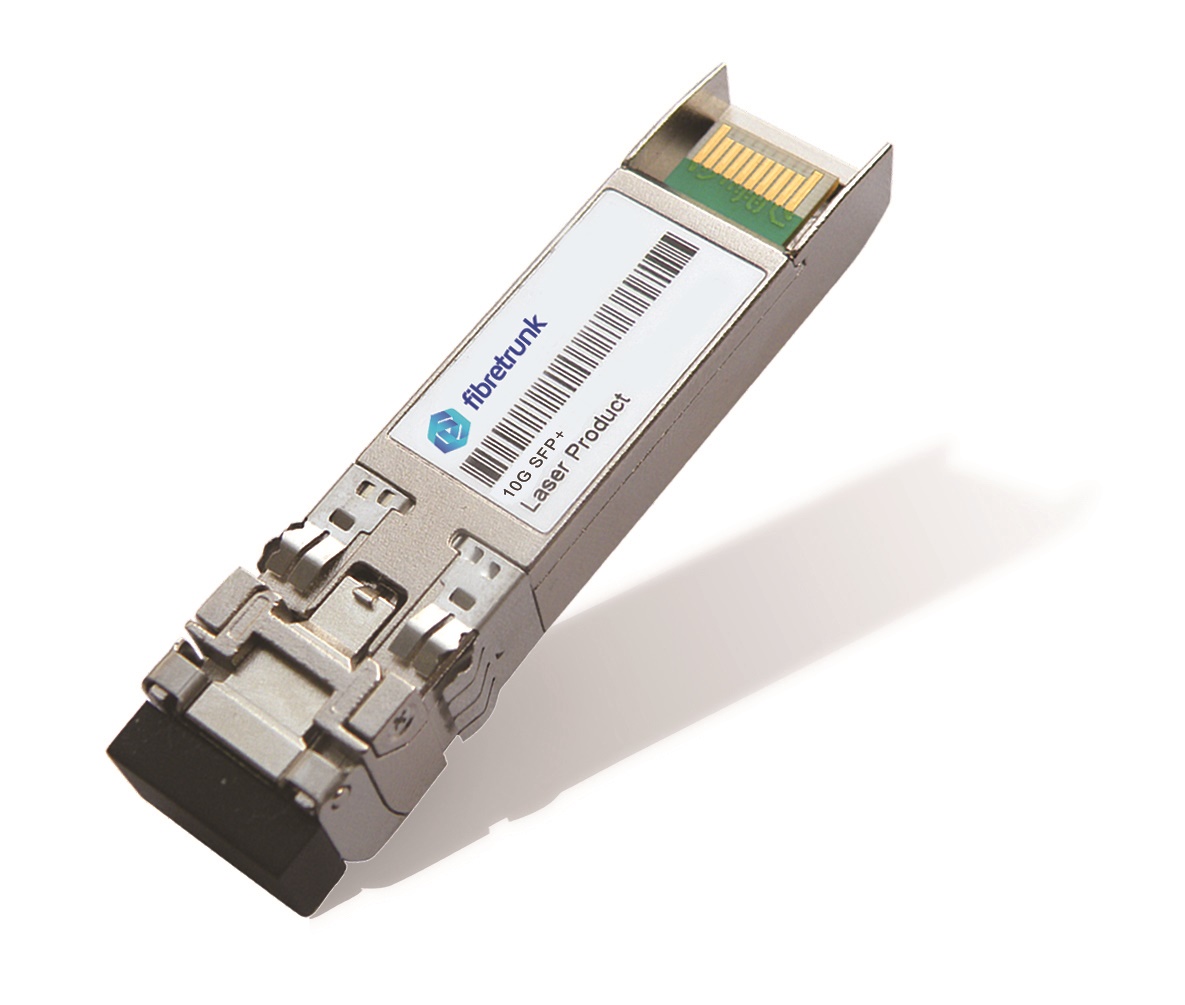

10G SFP+ Ethernet optical transceivers include LR, ER, ZR, and DWDM (40km and 80km) series. This series of products adopt LC connector, compliant with IEEE802.3ae, SFF-8472 and SFF-8431, with features of Low Power Consumption, Small Size and High-speed. They are designed for applications of Data Centers, Metro Network, Wireless Network and Transmission network.

Product DescriptionSFP+ SRSFP+ SR Rate SelectSFP+ SR COB
Data Rate (Gbit/s)10G10G/1G10G
Reach33/82/300m33/82/300m33/82/300m
TX850nm VCSEL850nm VCSEL850nm VCSEL
RXPINPINPIN
TX_Min (dBm)-6.5-6.5-6.5
TX_Max (dBm)-1-1-1
Rx Sensitivity (dBm)-11.1-11.1-11.1
Power Consumption<0.8w<0.8w<0.8W
Temperature (deg C)0~700~700-70
REQUEST QUOTE
Product DescriptionSFP+ LTE 6G 2kmSFP+ LTE 10G 1.4km
Data Rate (Gbit/s)6G10G
Reach2km1.4km
TX1310nm FP1310nm FP
RXPINPIN
TX_Min (dBm)-8.2-8.2
TX_Max (dBm)0.50.5
Rx Sensitivity (dBm)-14.4-14.4
Power Consumption<1w<1w
Temperature (deg C)-40~85-40~85
REQUEST QUOTE
Product DescriptionSFP+ LRMSFP+ LR LTESFP+ LRSFP+ LRSFP+ LR Rate SelectSFP+ LR with APD
Data Rate (Gbit/s)10G10G10G10G10G/1G10G
Reach100/220m1.5km10km10km10km40km
TX1310nm FP1310nm FP1310nm DFB1310nm DFB1310nm DFB1310nm DFB
RXPINPINPINPINPINAPD
TX_Min (dBm)-6.5-5.2-8.2-8.2-8.2-8.2
TX_Max (dBm)0.50.50.50.50.50.5
Rx Sensitivity (dBm)-6.5-14.4-14.4-14.4-14.4-24
Power Consumption<1w<1w<1w<1w<1w<1.2w
Temperature (deg C)0~700~700-70-40~850~700~70
REQUEST QUOTE
Product DescriptionSFP+ ER
Data Rate (Gbit/s)10G
Reach40km
TX1550nm EML
RXPIN
TX_Min (dBm)-3
TX_Max (dBm)3
Rx Sensitivity (dBm)-15.8
Power Consumption<1.5w
Temperature (deg C)0~70
REQUEST QUOTE
Product DescriptionSFP+ ZR
Data Rate (Gbit/s)10G
Reach80km
TX1550nm EML
RXAPD
TX_Min (dBm)0
TX_Max (dBm)4
Rx Sensitivity (dBm)-24
Power Consumption<1.5w
Temperature (deg C)0~70
REQUEST QUOTE
Product DescriptionSFP+ BIDI 20kmSFP+ BIDI 40kmSFP+ BIDI 60km
Data Rate (Gbit/s)10G10G10G
Reach20km40km60km
TXDFBDFBDFB
RXPINAPDAPD
TX_Min (dBm)-4.403
TX_Max (dBm)0.557
Rx Sensitivity (dBm)-14.4-18-21
Power Consumption<1w<1.2w<1.2w
Temperature (deg C)-40~850~700~70
REQUEST QUOTE
Product DescriptionSFP+ CWDM LRSFP+ CWDM ERSFP+ CWDM 70kmSFP+ DWDM ERSFP+ DWDM ZR
Data Rate (Gbit/s)10G10G10G10G10G
Reach10km40km70km40km80km
TXDFBEMLEMLEMLEML
RXPINPINAPDPINAPD
TX_Min (dBm)-1-30-30
TX_Max (dBm)33434
Rx Sensitivity (dBm)-15-16.4-24-16.4-24
Power Consumption<1.4w<1.5w<1.5w<1.5w<1.5w
Temperature (deg C)0~700~700~700~700~70
REQUEST QUOTE

Fibretrunk has comprehensive portfolio of SONET optical transceivers, including LR, ER, ZR, DWDM ER, DWDM ZR series, compliant with SONET OC192/SDH STM64 and IEEE802.3ae. They are designed for applications of SONET (OC-192)/SDH (STM64) Line Card.

Product DescriptionSFP+ LR SONET
Data Rate (Gbit/s)10G
Reach10km
TX1310nm DFB
RXPIN
TX_Min (dBm)-6
TX_Max (dBm)-1
Rx Sensitivity (dBm)-14.6
Power Consumption<1.2w
Temperature (deg C)0~70
Product DescriptionSFP+ ER SONET
Data Rate (Gbit/s)10G
Reach40km
TX1550nm EML
RXPIN
TX_Min (dBm)-3
TX_Max (dBm)3
Rx Sensitivity (dBm)-15.8
Power Consumption<1.6w
Temperature (deg C)0~70
Product DescriptionSFP+ ZR SONET
Data Rate (Gbit/s)10G
Reach80Km
TX1550nm EML
RXAPD
TX_Min (dBm)0
TX_Max (dBm)4
Rx Sensitivity (dBm)-24
Power Consumption<1.8w
Temperature (deg C)0~70
Product DescriptionSFP+ CWDM ER SONETSFP+ CWDM ZR SONET
Data Rate (Gbit/s)10G10G
Reach40km70km
TXEMLEML
RXPINAPD
TX_Min (dBm)-30
TX_Max (dBm)34
Rx Sensitivity (dBm)-16.4-24
Power Consumption<1.8w<1.8w
Temperature (deg C)0~700~70
Product DescriptionSFP+ DWDM ER SONETSFP+ DWDM ZR SONET
Data Rate (Gbit/s)10G10G
Reach40km80km
TXEMLEML
RXPINAPD
TX_Min (dBm)-30
TX_Max (dBm)34
Rx Sensitivity (dBm)-16.4-24
Power Consumption<1.8w<1.8w
Temperature (deg C)0~700~70

Please contact us on +61 2 8378 9113 to speak with a specialist
