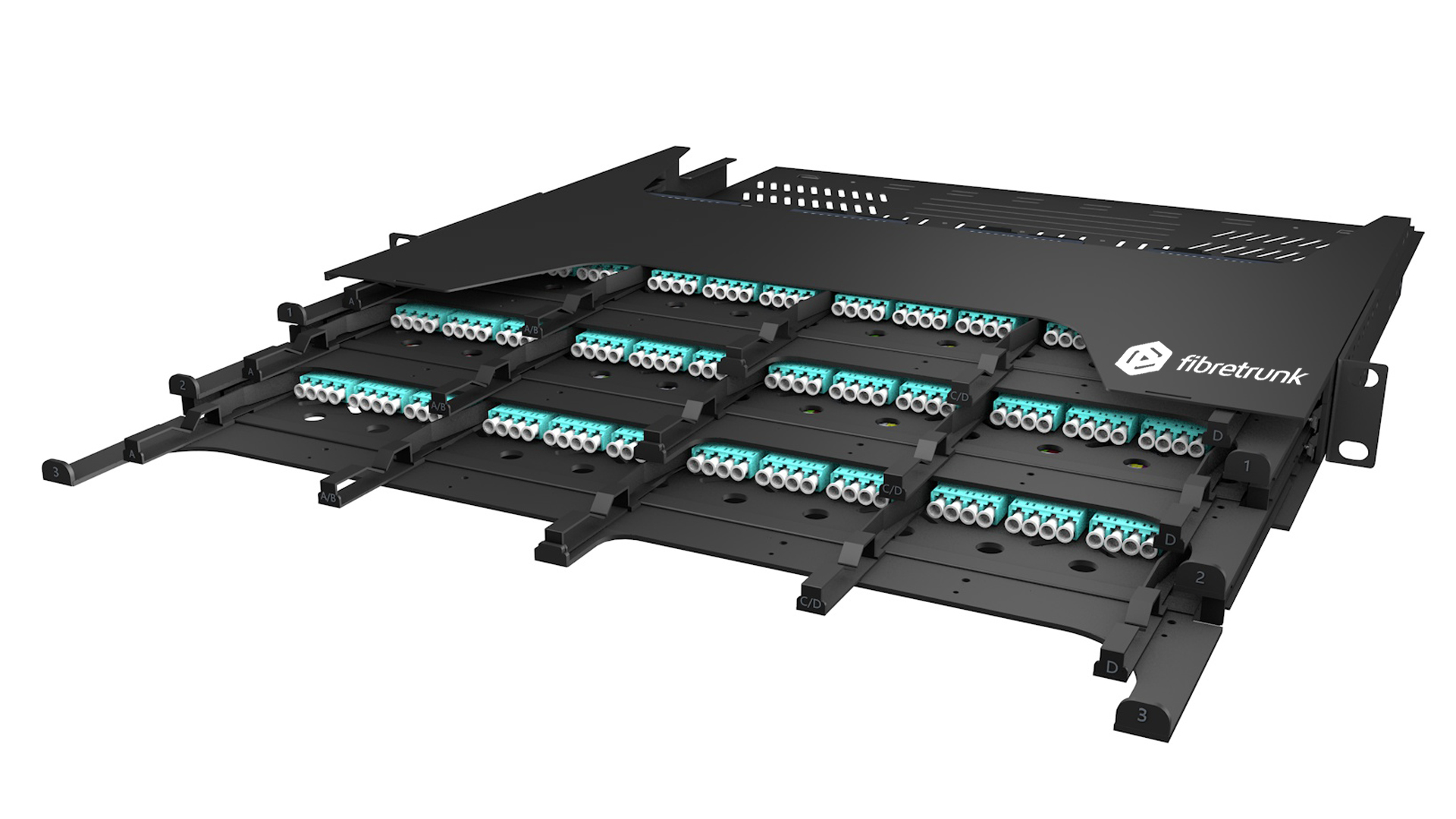

The Ultra-High-Density chassis is a modular, standards-based, pre-terminated distribution platform designed to increase port density, improve connector access, and efficiently utilize valuable rack space in data centres. The FMP6 Chassis system has a maximum capacity of twelve 12F modules or sixteen 8F modules installable (per 1U), that allows multiple fibre connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes. Integrated fibre management features are provided to secure trunk cables, separate patch cords and maintain safe bend radius during fibre routing
144c in 1RU
Part Numbers
FMP6-1U
FMP6-2U
FMP6-4U

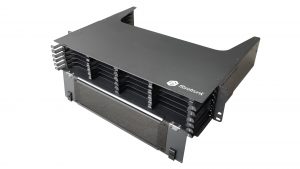

288c in 2RU

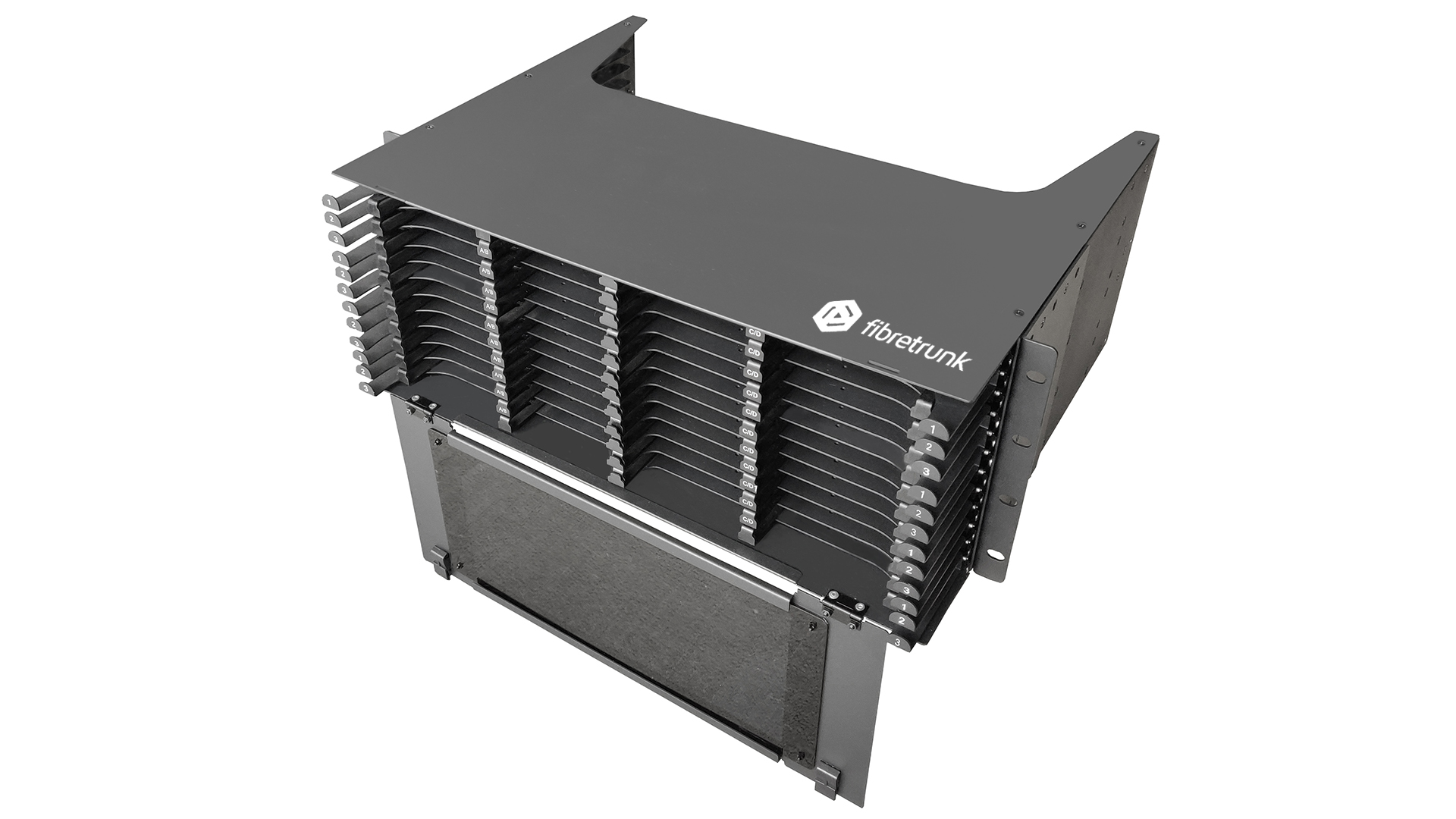

576c in 4RU
Features
• Designed for 19” rack installations
• Available for OM3, OM4 and SM
• Cassettes 100% Factory Tested & Terminated
• Available in 1RU, 2RU & 4RU configurations

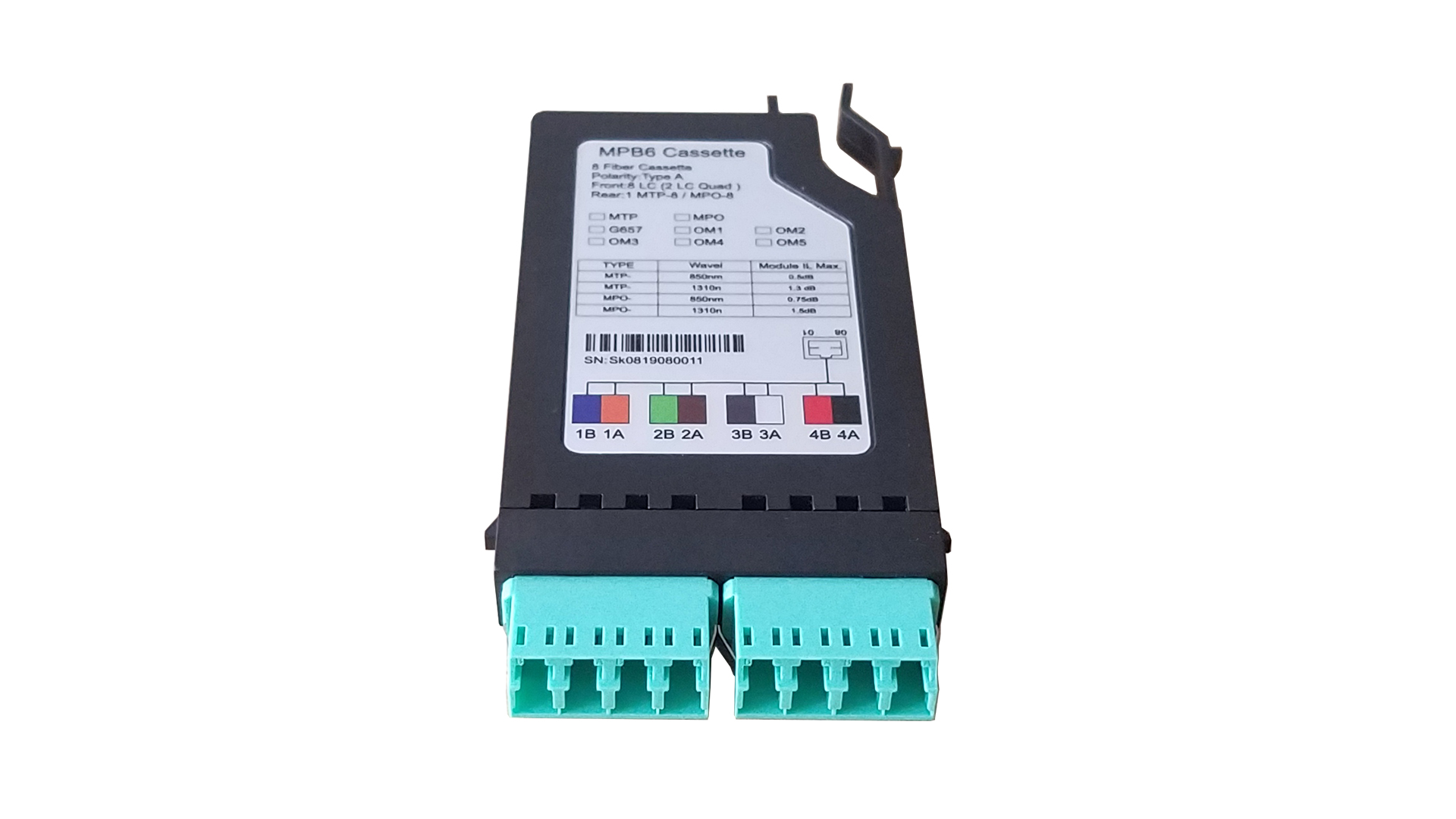

• Available in Base 8 and Base 12 configuration
• UHD configuration: 144c per 1RU or 72 x LCD/Ports

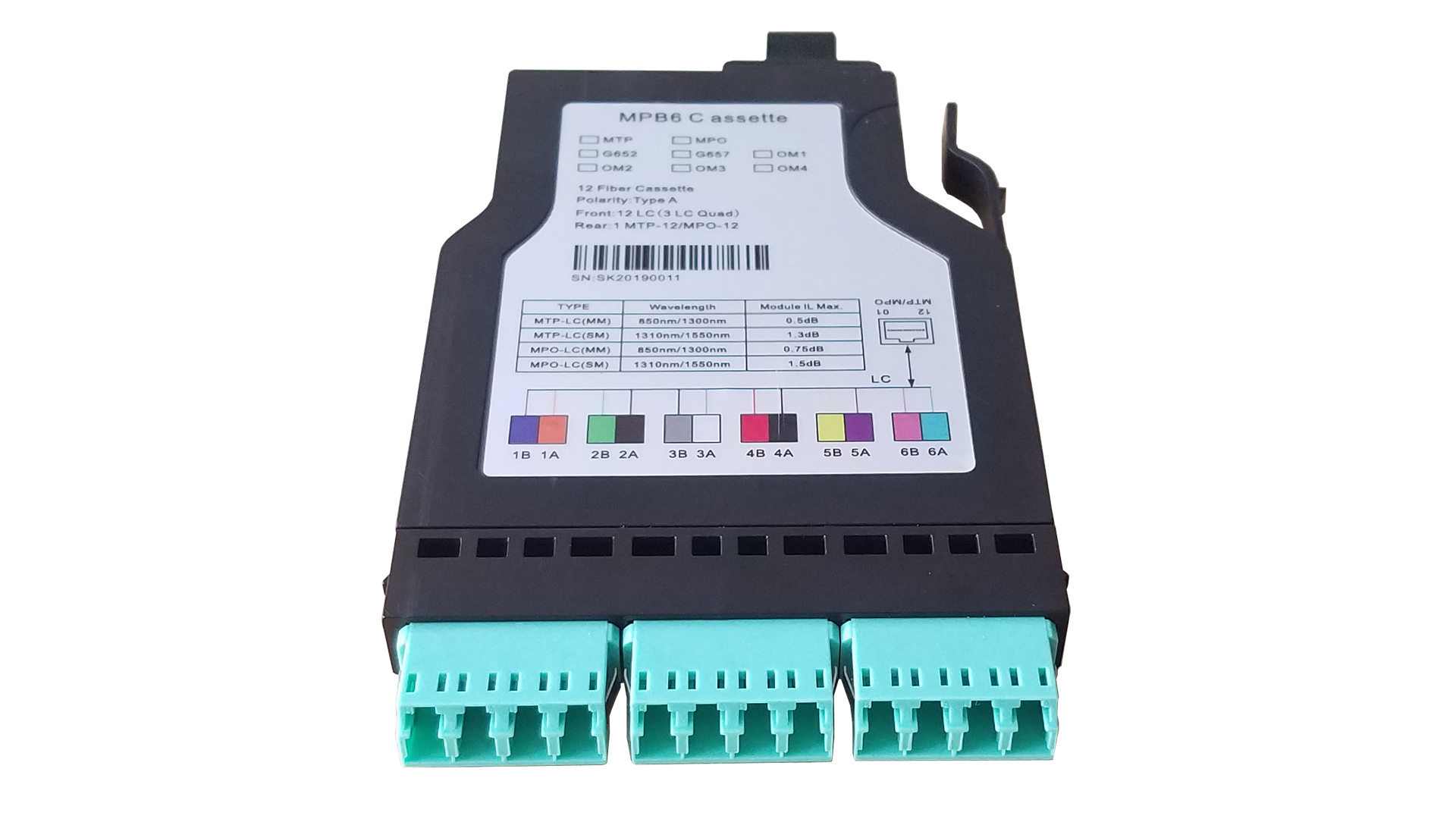

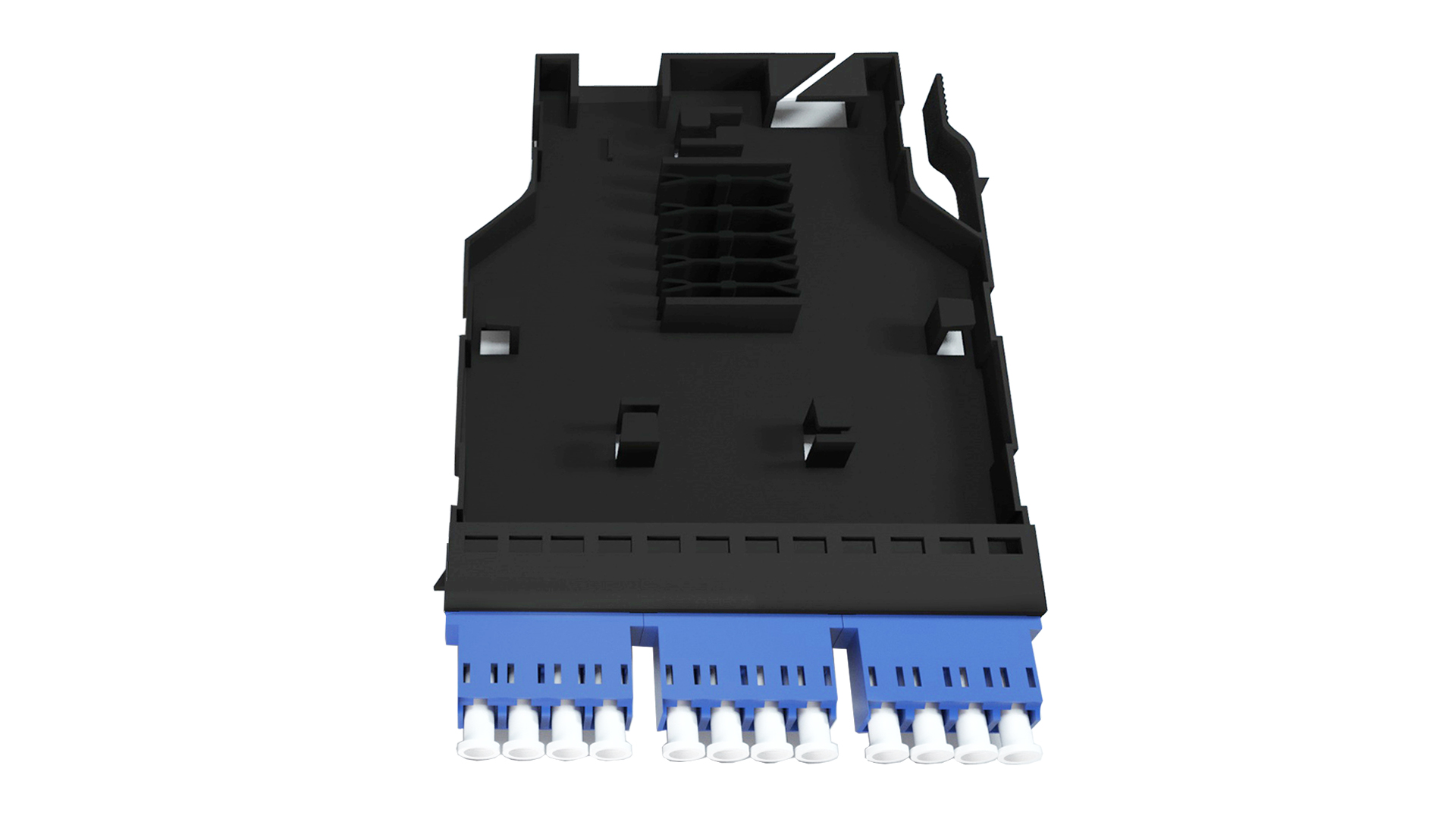

• Design is based on modular 12 x 12c UHD cassettes per 1RU
• Three Layer sliding draws per RU design, for easy access to cassettes and patching
• Unique easy removal of cassettes from either Front or Rear of enclosure
• Low Loss MTP elite connectors
• Low Loss LC connectors/couplers

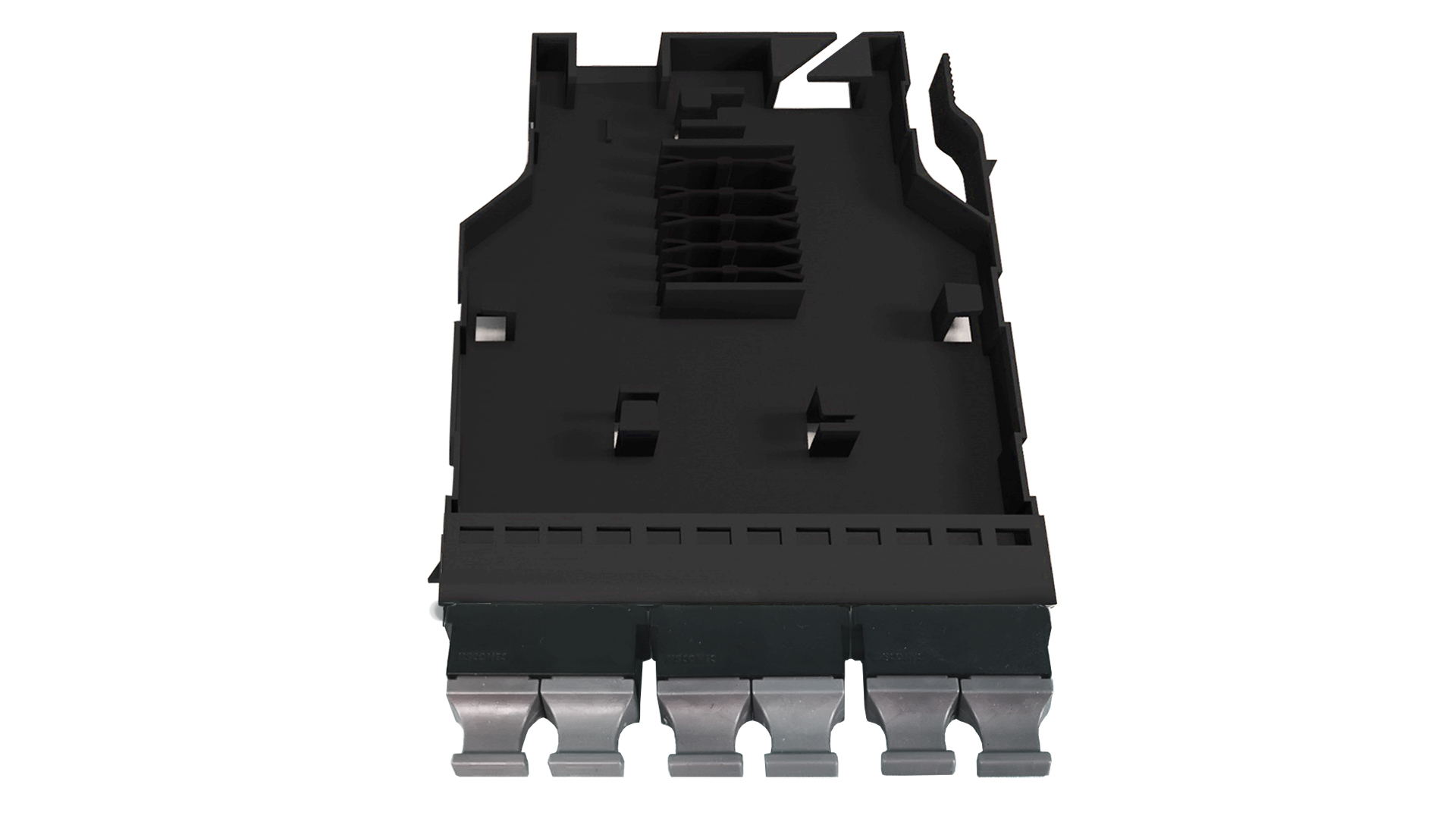

• MTP - MTP adaptor/coupler panels available
• Blanking Panels available
• Front Mount Cable Tray with Hinged Cover (incl wiring doc with labelling template)
• Dust covers included on LC connectors
• Tool-less installation
Applications
• Data Centres
• Telecommunications
• Enterprise Network Environments
